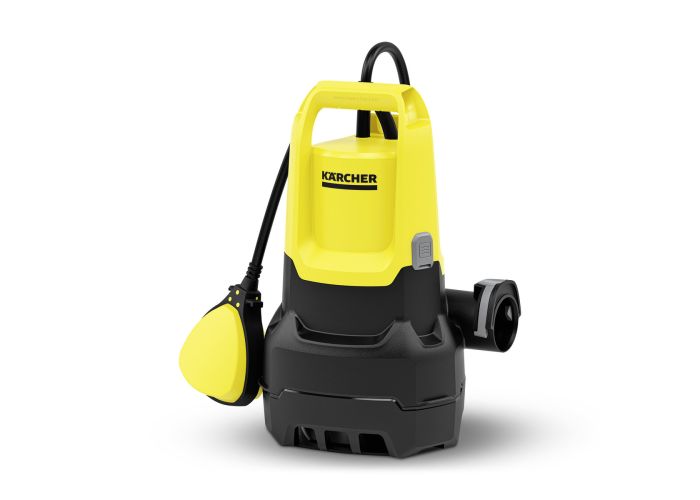

Submersible Dirty Water Pump SP 9.500 DIRT

Robust and reliable: The SP 9,500 Dirt submersible pump with a capacity of up to 9,500 l/h including float switch is a compact entry-level pump for pumping out and transferring dirty water.

AED 299
In stock
SKU
16458010
Delivery: 1- 2 Working Days
Buy together
+ +
Complete the set
AED 627
Its maximum pump capacity of 9,500 litres per hour makes the SP 9,500 Dirt the perfect entry-level model for quickly pumping out and transferring water from water butts and garden ponds. It reliably pumps out clean and dirty water containing dirt particles up to 20 mm in diameter. For heavy dirt, an optional prefilter can be fitted, which protects the pump impeller against blockages caused by branches, for example. The slide ring sealing – a tried-and-tested solution from our Professional range, fitted in all submersible pumps – also guarantees that the pump has an extraordinarily long lifetime. There is also the option to extend the warranty to five years. The submersible dirty water pump is also fitted with a float switch that switches the pump on and off depending on the water level, thereby also preventing dry running. Thanks to the fixing attachment for the float switch, the pump can be used even at a low water level down to a residual water depth of 25 mm. Other practical features: The Quick Connect connection thread enables the quick and simple connection of 1", 1 1/4" and 1 1/2" hoses.

Feature and Benefits

06798782-7bae-4400-9562-15972f2c51d2

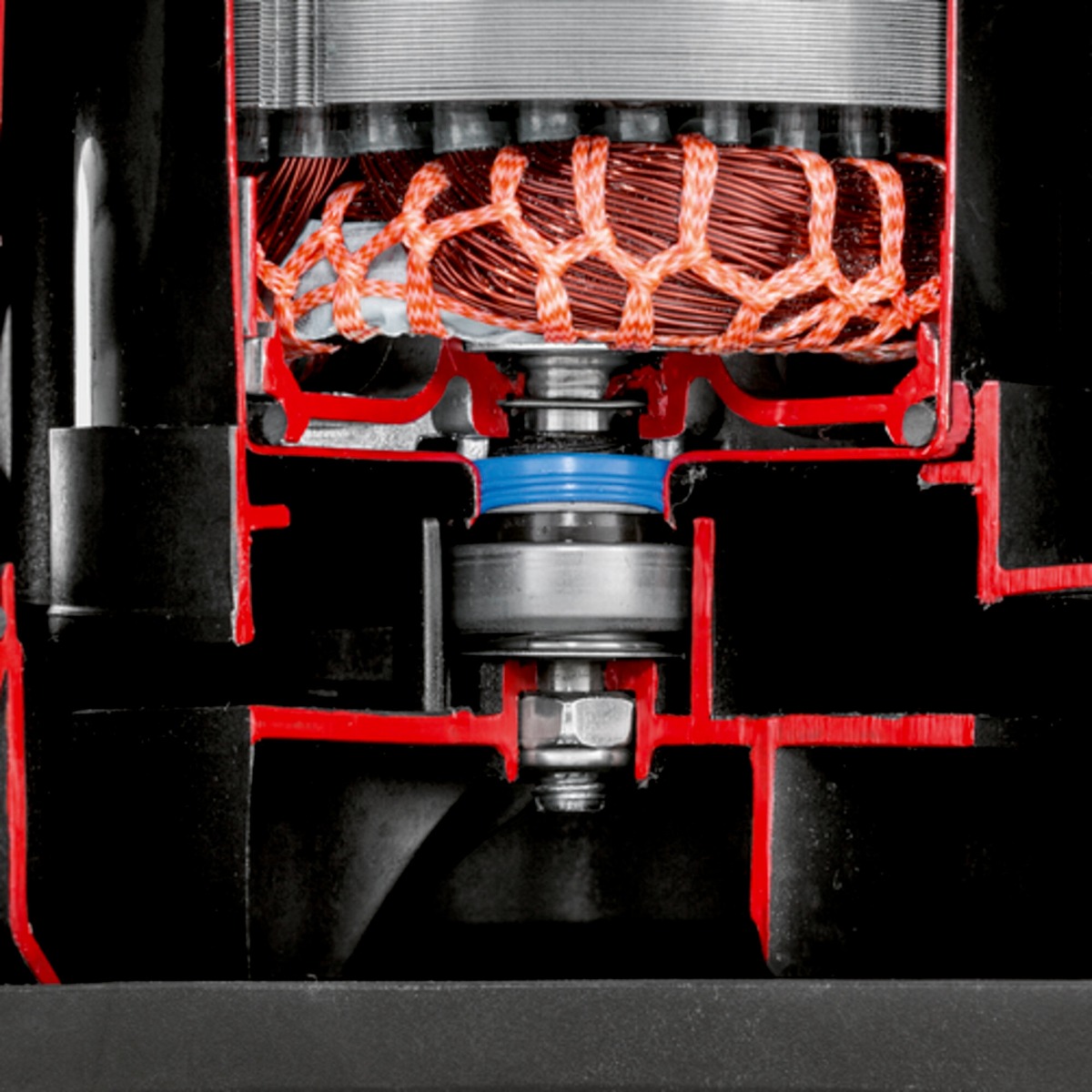

Ceramic face seal.

For an extra long lifetime.

5a0ece34-aa90-463c-9ea6-b8c042aa227f

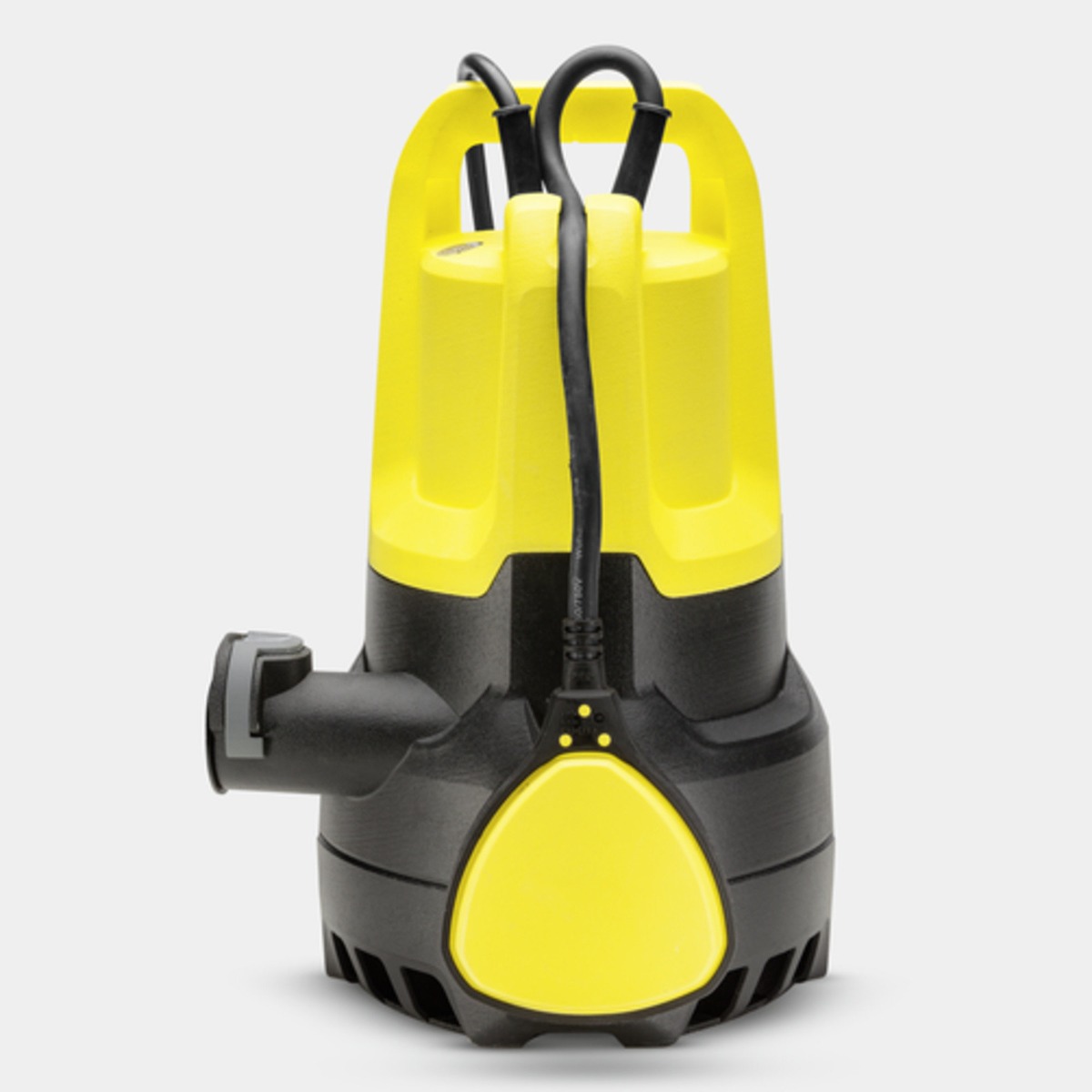

Float switch

Switches the pump on and off again according to the water level, preventing dry running.

525e3d9b-d69b-428a-abbb-9f03798b2ead

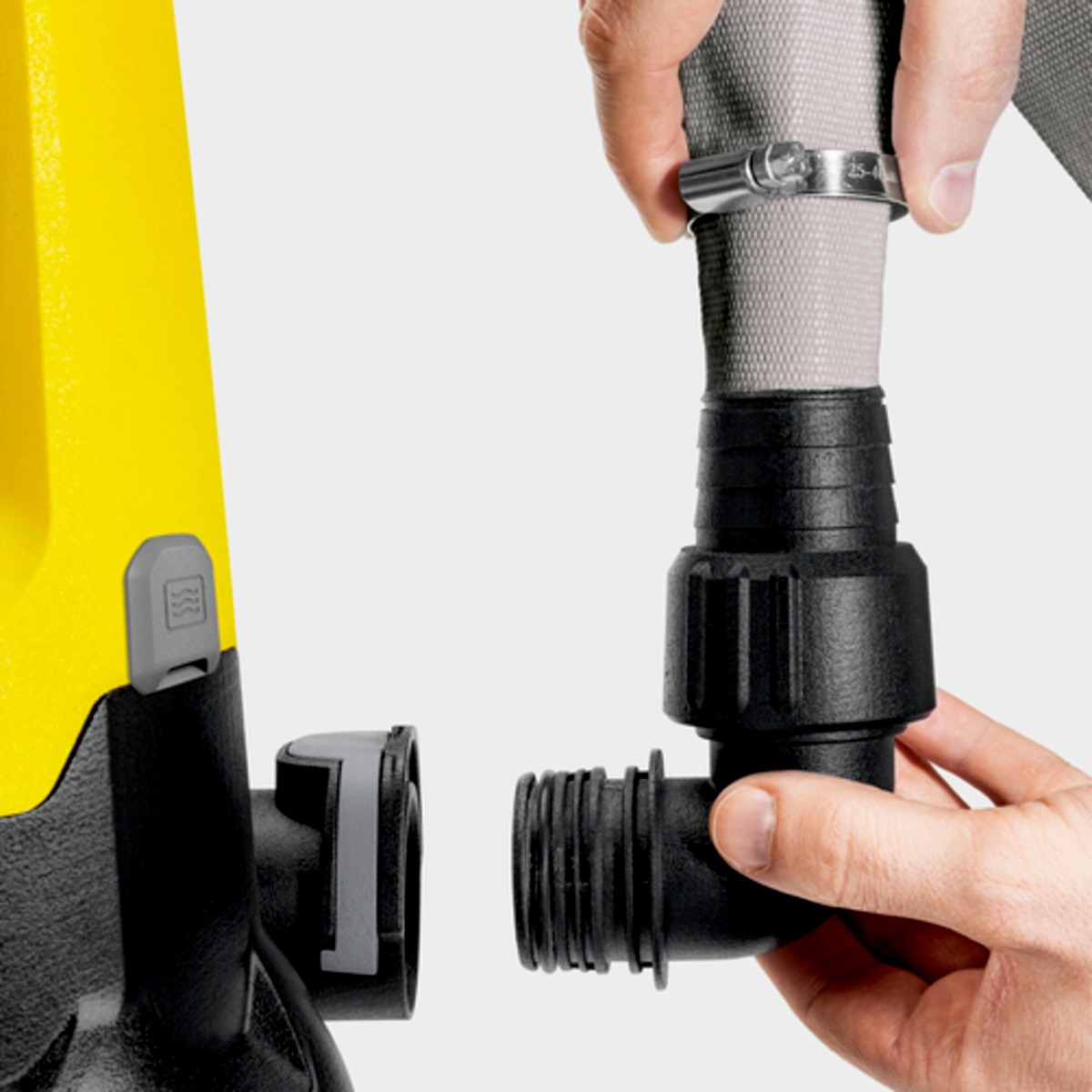

Quick Connect

Connection thread for quickly and simply connecting 1", 1 1/4" and 1 1/2" hoses or a G1 connection.

Specifications

Technical data
Max. motor rating (W) 280
Max. flow rate (l/h) < 9500
Delivery temperature (°C) max. 35
Delivery head (m) 6
Pressure (bar) max. 0,6
Grain size (mm) max. 20
Immersion depth (m) max. 7
Min. residual water, manual (mm) 25
Residual water height (mm) 25
Connection thread G1 1/2
Pressure-side connection thread G1/2 internal thread
Power cable (m) 10
Voltage (V) 230 - 240
Frequency (Hz) 50
Weight without accessories (kg) 3,8
Weight incl. packaging (kg) 4,6
Dimensions (L x W x H) (mm) 229 x 238 x 303

Product Attachments

document
SP 9.500 Dirt Operating Instructions
DOWNLOAD
(1.79 MB)
