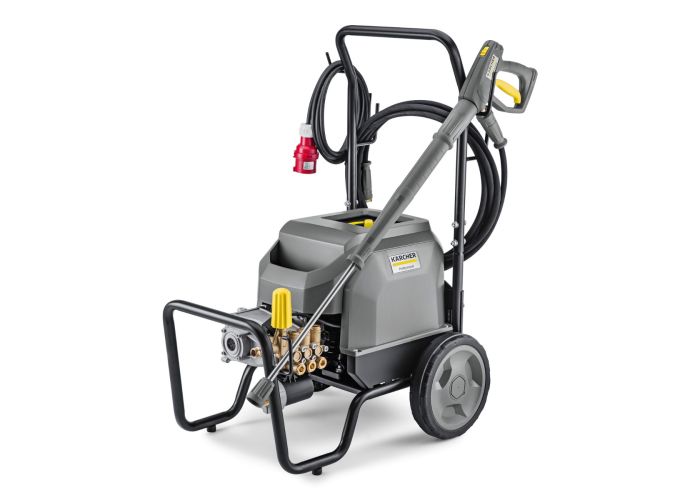

HIGH-PRESSURE CLEANER HD 9/20-4 M Classic

Robust, versatile high-pressure cleaner with steel frame, 4-pole low-speed motor, crankshaft pump with brass cylinder head for long downtime and low maintenance effort.

AED 5,999.00
SKU
13679030
The easy-to-use HD 9/20-4 M Classic high-pressure cleaner from Kärcher's Classic range delivers an impressive robust construction design, high-quality, durable components and great versatility. The middle-class machine is suitable for a wide range of cleaning tasks, such as cleaning vehicles, production facilities, agricultural machines and equipment as well as façade cleaning and in the municipal sector. The durable crankshaft pump with brass cylinder head and suction function enables work with water temperatures of up to 60 °C and also offers adjustment options for water volume and working pressure. The reduced speed of the 4-pole low-speed motor also ensures less wear and tear on the pump, which is also protected by an integrated water filter. All important components are easily accessible in just a few steps thanks to the simple maintenance. The clever concept of the HD 9/20-4 M Classic is rounded off by thoughtfully engineered accessory storage with EASY!Lock connections for quick and intuitive accessory replacement.

Feature and Benefits

37f88ed8-498f-4166-aa95-587316bf2b23

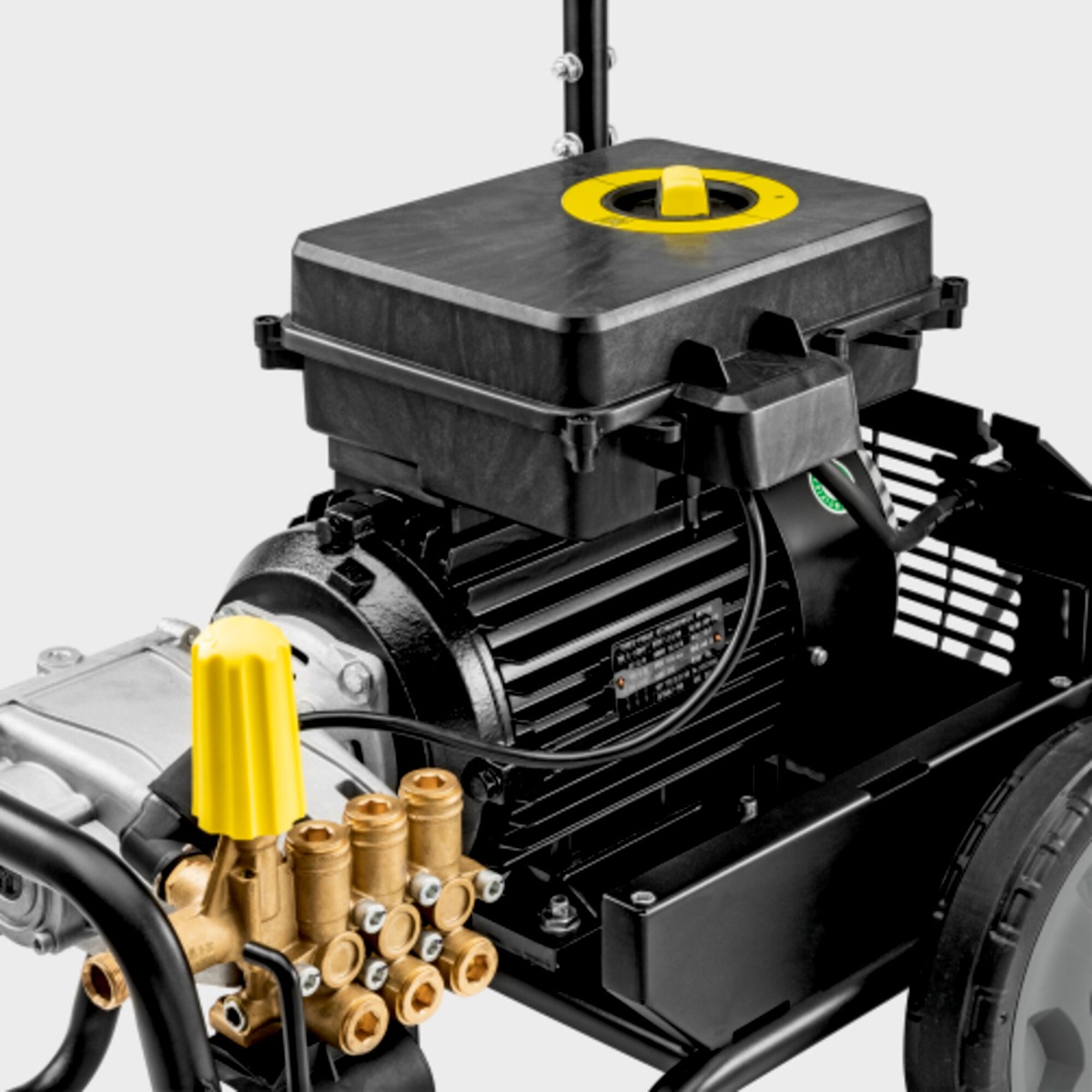

4-pole low-speed electric motor

Reduced motor speed for less pump wear. Long engine life. Only very low engine vibrations.

995e920b-f681-4e56-a558-9dbfa31d5e64

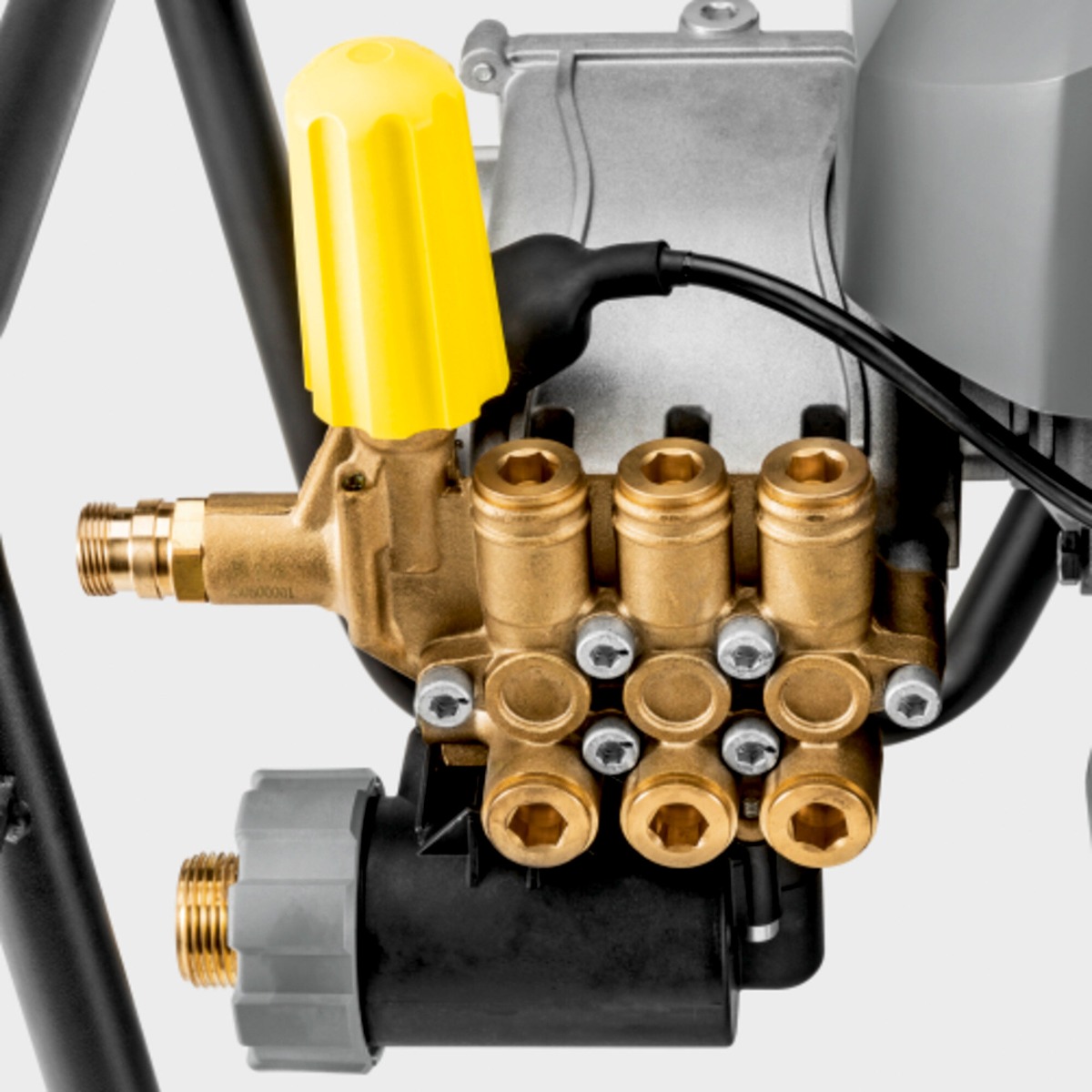

Robust crankshaft pump with brass cylinder head

Long service life and low maintenance costs. Pressure and water volume can be adjusted on the pump itself. With suction feature and up to 60 °C water temperature.
9ae6a164-0d0b-4b36-90dd-0a1966b3b7ff

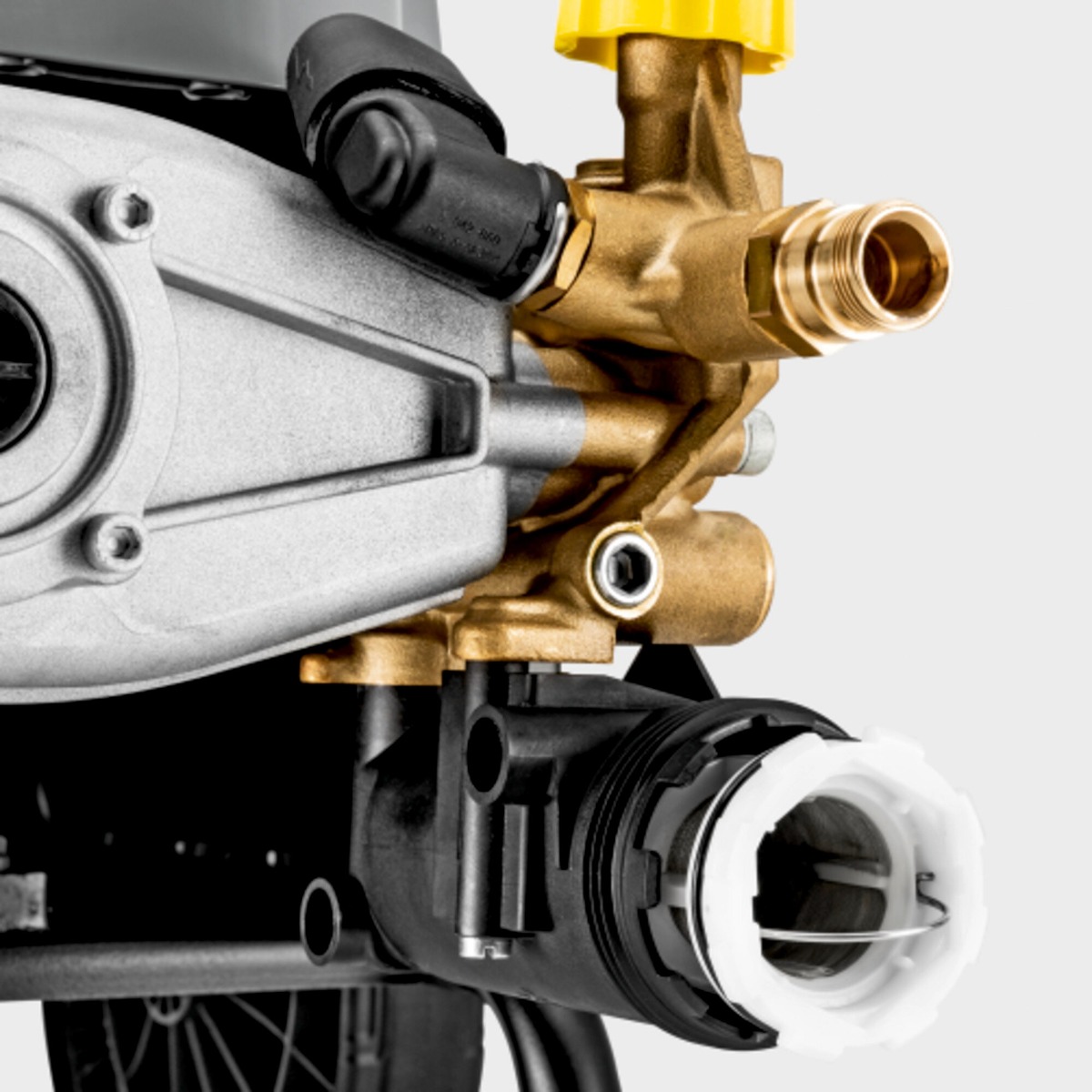

Simple maintenance

All important components are accessible in a few easy steps. The filling level and quality of the oil are easy to read thanks to the inspection glass. Integrated water filter can be removed and cleaned without any tools.


Specifications

Technical data
Supply voltage (Ph/V/Hz)3 / 376 - 424 / 50
Flow rate (l/h)500 - 900
Inlet temperature (°C)60
Working pressure (bar)70 - 200
Max. pressure (bar)240
Connected load (kW)6.5
Power cable (m)5
Nozzle size047
Water inlet1″
Colouranthracite
Weight (with accessories) (kg)63.5
Weight incl. packaging (kg)72
Dimensions (L x W x H) (mm)740 x 528 x 952
Equipment
  • Pressure switch-off
