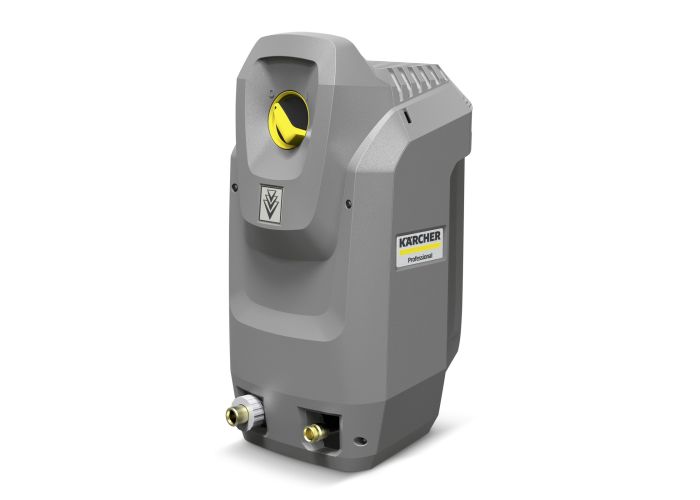

HD 6/15 M St *EU
The compact HD 6/15 M St motor/pump unit for stationary use, with AC motor, wall mount, 600 litres per hour flow rate and automatic pressure relief.
1.150-950.0
Feature and Benefits
High-quality equipment
Automatic pressure relief for protecting the components extends their life. Powerful, 2-pole, air-cooled electric motor. High-quality brass cylinder head
Flexible operation
For vertical and horizontal operation.
Prepared for stationary operation

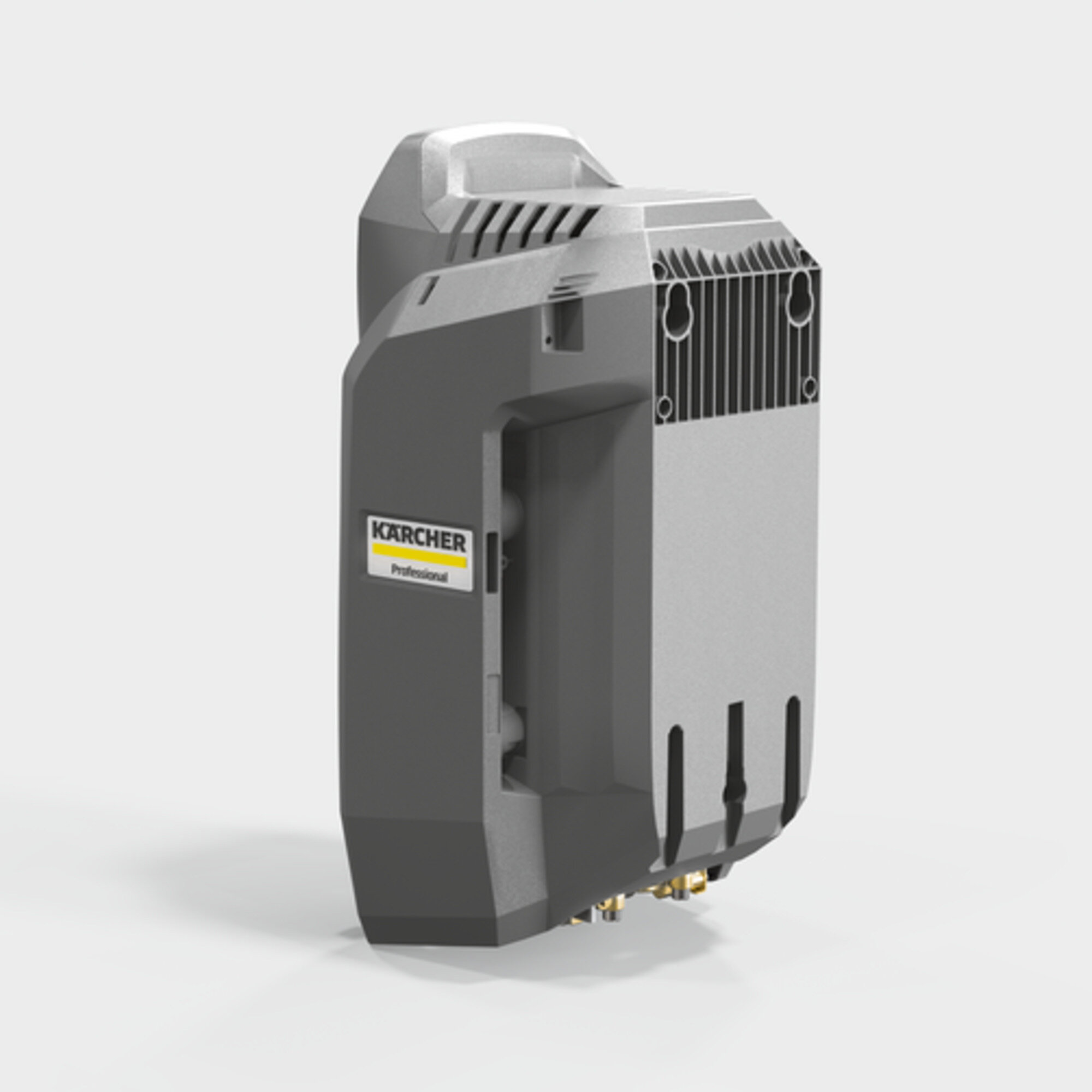

Simple and robust 3-point attachment for wall mounting on the rear of unit. Space-saving, compact design. Integrated storage possibilities reduce the set-up times.
Easy servicing
- Easy access to the cylinder head through the open part at the bottom of the machine.
- Quick access to the electrical box by simple removal of the machine cover.
- Large, easy-to-reach water fine filter for protecting the pump against dirt particles in the water.
Increased energy efficiency

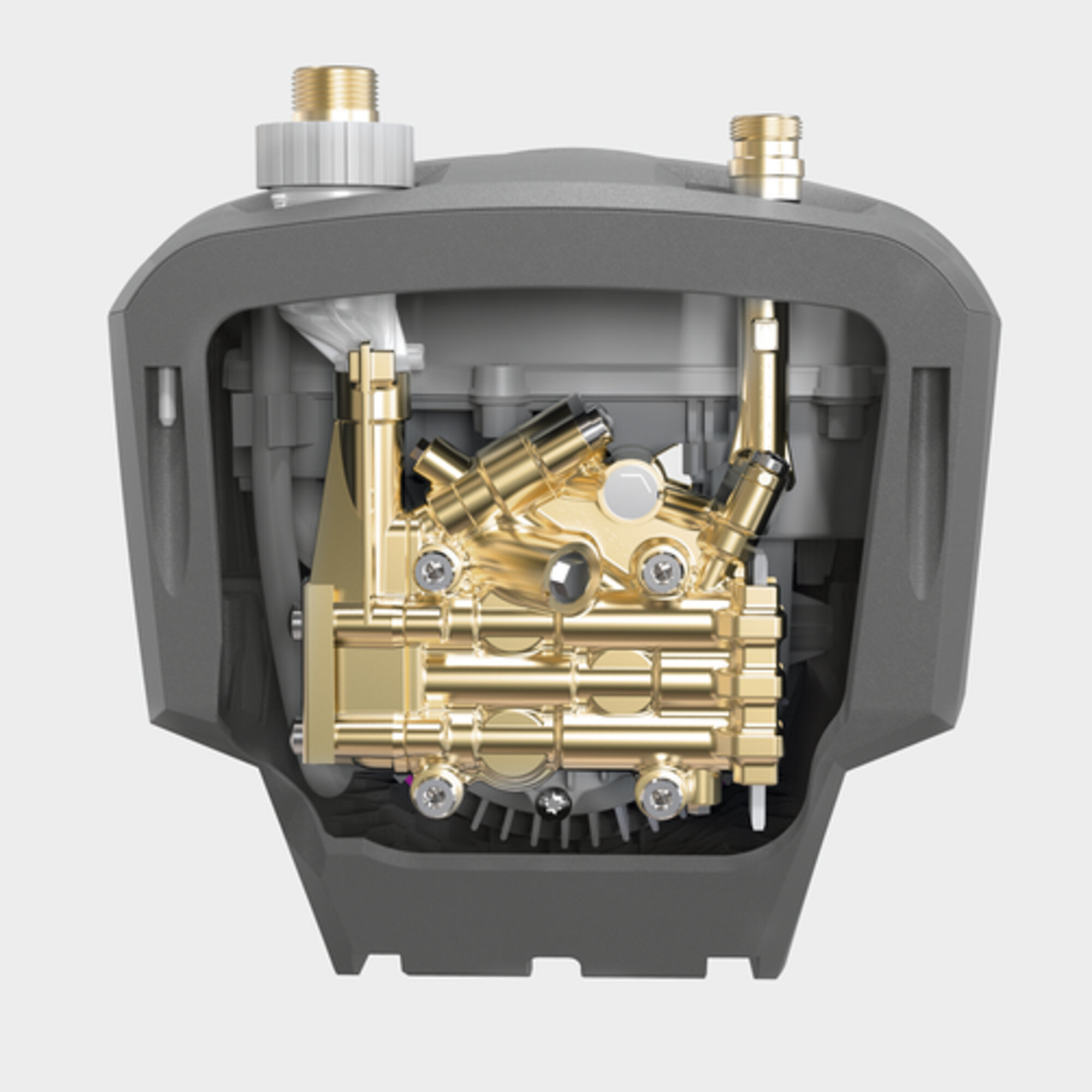

- Newly developed 3-piston axial pump for considerably reduced flow and pressure losses.
- 20% increase in cleaning performance and energy efficiency.
Specifications
Technical data
| Number of current phases (Ph) | 1 |
| Voltage (V) | 230 |
| Frequency (Hz) | 50 |
| Flow rate (l/h) | 560 |
| Inlet temperature (°C) | 60 |
| Working pressure (bar/MPa) | 150 / 15 |
| Max. pressure (bar/MPa) | 225 / 22,5 |
| Connected load (kW) | 3,1 |
| Power cable (m) | 5 |
| Water inlet | 3/4″ |
| Colour | anthracite |
| Weight (with accessories) (kg) | 20,5 |
| Weight incl. packaging (kg) | 22,9 |
| Dimensions (L × W × H) (mm) | 290 x 300 x 565 |
Application Areas
- Perfect for building contractors, tradesmen, building service providers and municipalities
