City sweeper MC 80

The MC 80 sweeper from the compact class impresses with its environmental friendliness, the largest cab in its class with 1.45 m³ air volume and its intuitive operating concept.

SKU
14422522
Delivery: 1- 2 Working Days

With the MC 80 the technology of the very large machines is now used in the compact class of the sweepers. For example, the 800 litre container for swept material with water circulation system is based on computer-aided CFD simulations, the two-brush system has individual brush control with individual lifting, the straight suction channel effectively prevents blockages and the suction mouth is located in the wheel contour where it is protected from impacts. The excellent standard equipment can be complemented with various attachment kits, such as a 3rd side brush, a weed brush, a wander hose or a high-pressure cleaner. In terms of working comfort, the MC 80 scores well with the largest cab in its class, a perfect all-round view and a transparent and ergonomic layout of the operating elements. Practical details such as a lockable storage compartment, bottle holder and USB charging port are also included.

Feature and Benefits

MC_80_Intuitive_operating

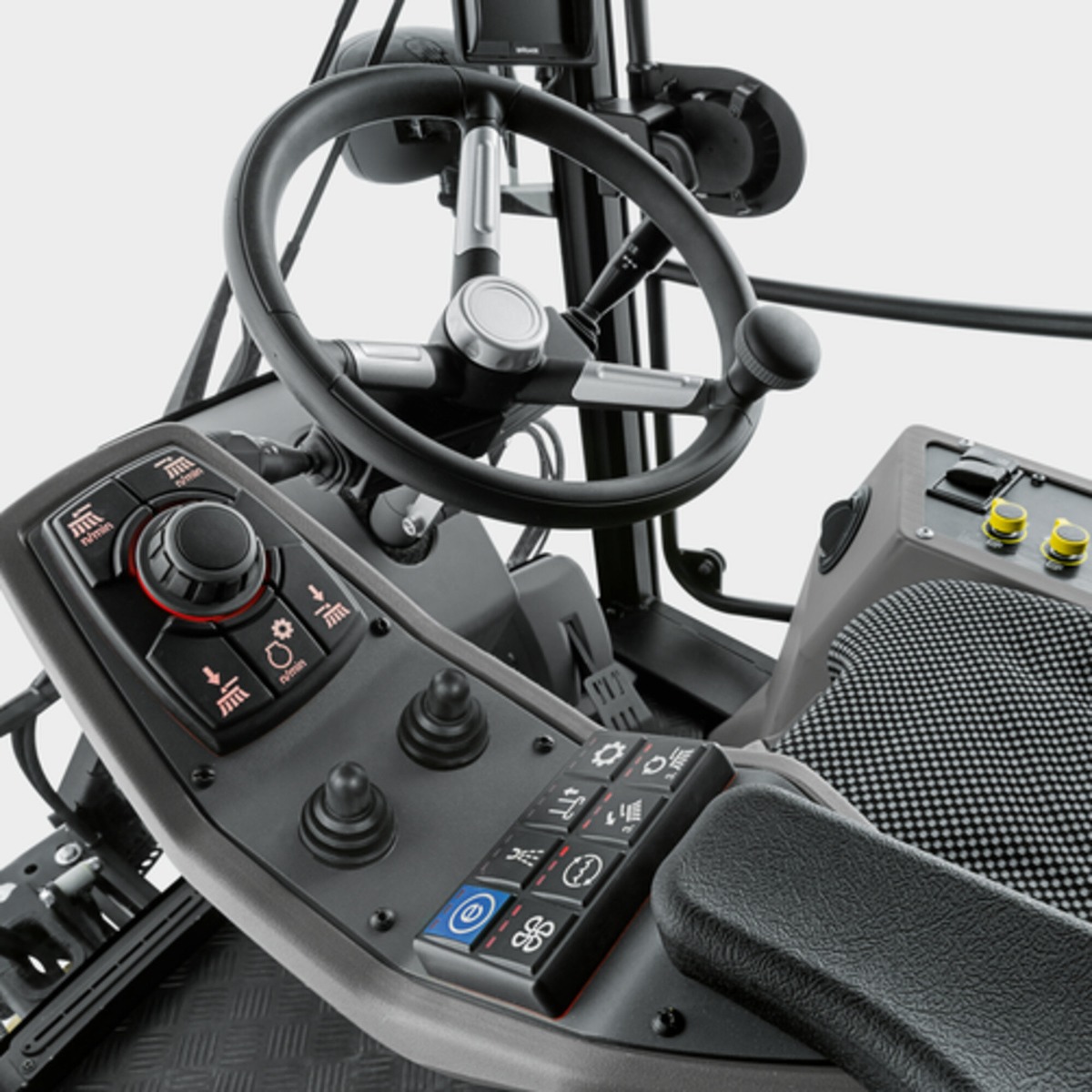

Intuitive operating concept from the 3.5 tonne class

Armrest with ergonomically integrated operating panel for intuitive operation. Quick start at the touch of a button. Individual control of all functions possible. Individual brush control and lifting increase precision.

MC_80_Maximum_operating_comfort

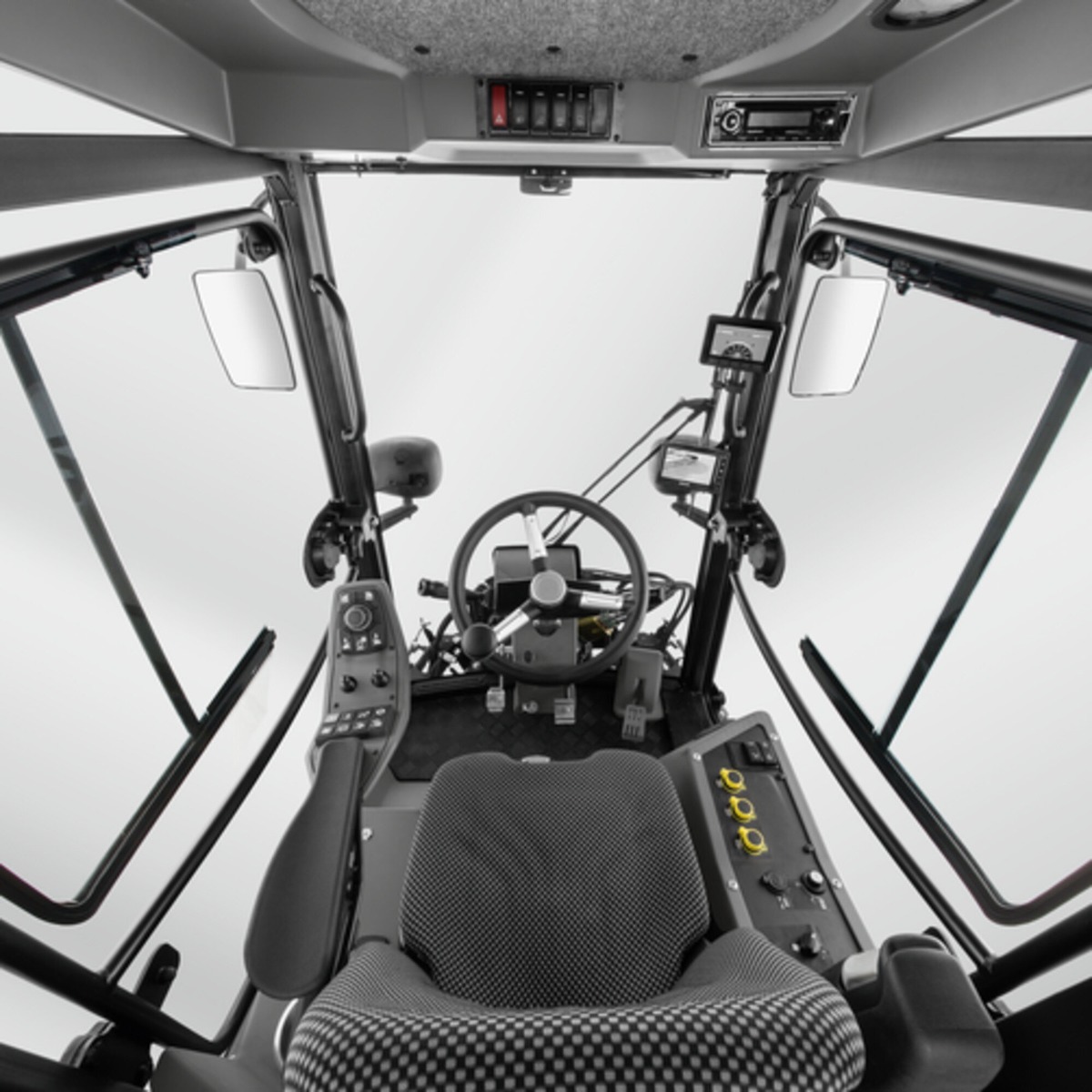

Maximum operating comfort

Largest cab in its class with 360° panoramic view, ergonomic and transparent. Windows on both sides, lockable storage compartment, USB charging port, bottle holder. Entry and exit on both sides for maximum flexibility when working.

MC_80_The_highest_standard

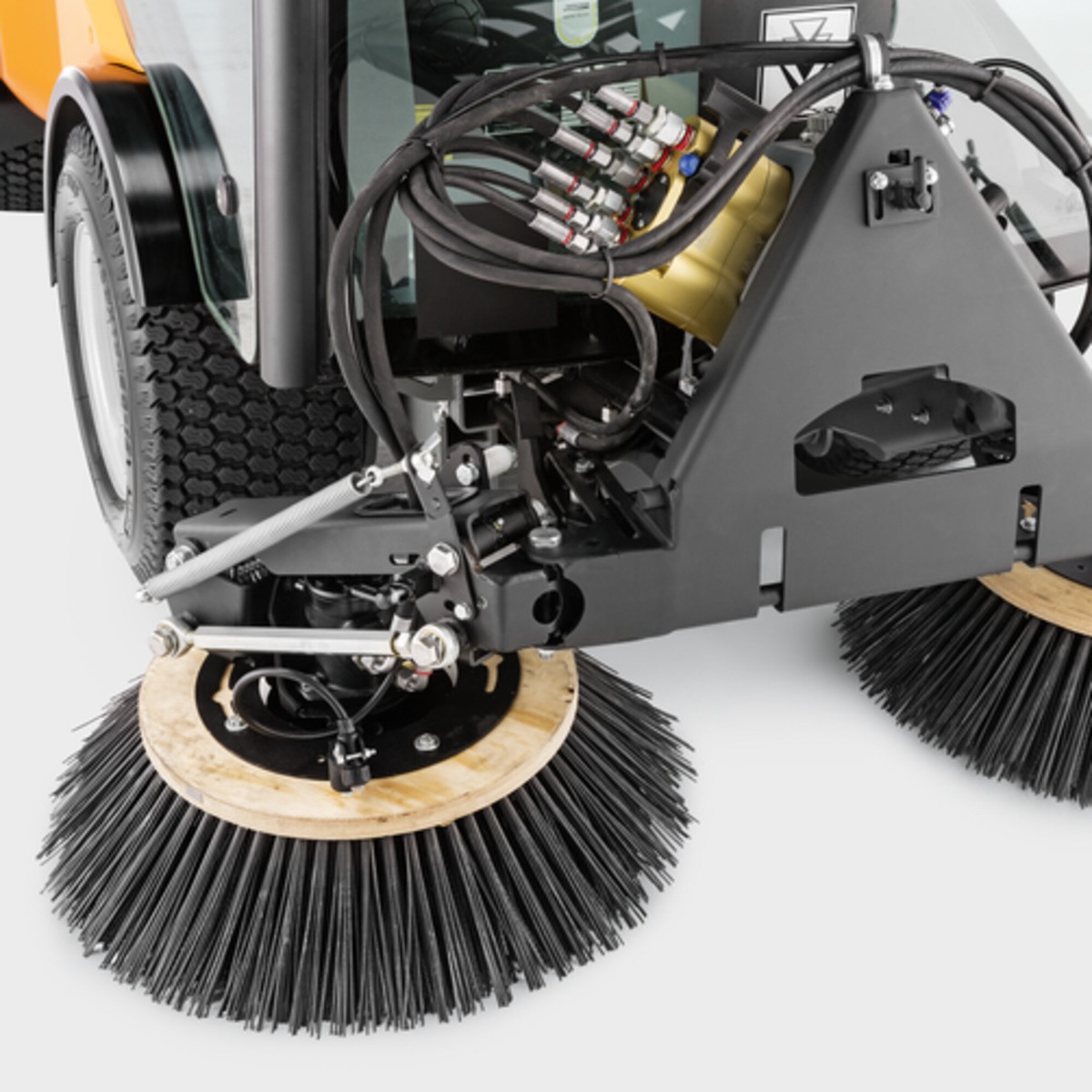

The highest standard of sweeping

Easy-to-assemble two brush system with individual control and lifting. 800 litre container for swept material with water circulation system and 185 litre fresh water tank. Optional attachment kits available such as 3rd side brush or weed brush.

Specifications

Technical data
Drive type Diesel
Traction drive All-wheel drive
Motor manufacturer Yanmar
Engine rating (kW) 26
Emissions standard STAGE V
Driving speed (km/h) 25
Working width with two side brushes (mm) 1630
Max. working width with three side brushes (mm) 2175
Waste container (l) 1000
Fresh water tank (l) 185
Total permissible weight (kg) 2500
Dimensions (L x W x H) (mm) 3200 x 1070 x 1985
Equipment
  • Particulate filter
  • Leaf suction hose
  • Temperature display
  • Elapsed time counter for sweeping gear
  • Comfort seat
  • Heating and air-conditioning unit
  • Heating
  • Suction
  • Side brush speed, adjustable
  • Forwards traction drive
  • Backwards traction drive
  • Coarse dirt flap
  • Hydr. high dump
  • Waste container: 1000 l
  • Panoramic cab with safety glass, 2 rear mirrors
  • Radio system
  • Flashing lights
  • Dust binding on side brushes and in the suction channel with water spraying system
  • Doors, left/right
  • Water tank: 150 l
  • Outdoor use
